HIGER AMBULANCE
Description
ENGINE |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | DK4B1 (Toyota Technology) | ||||||||||
| Emission | Euro III | ||||||||||
| Fuel Type | Diesel | ||||||||||
| Displacement | 2498 cc | ||||||||||
| Rated power (KW/rpm) | 85/3800 | ||||||||||
| Max. Torque (Nm/rpm) | 280Nm@1800-2600rpm | ||||||||||
TRANSMISSION |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | ZM001 5MT | ||||||||||
| No. of Gears | 5 Forward & 1 Reverse ) | ||||||||||
SUSPENSION |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front & Rear: | Front double wishbone independent suspension/ rear Variable Stiffness Spring | ||||||||||
| Driving mode | Front Engine/ Rear Wheel Drive | ||||||||||
STEERING & CLUTCH |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Steering | Hydraulic Aid | ||||||||||
| Clutch type | Singlechip, Hydraulic | ||||||||||
BRAKES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front & Rear | Front disk rear drum | ||||||||||
| Parking Brakes | Mechanical | ||||||||||
WHEELS & TYRES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

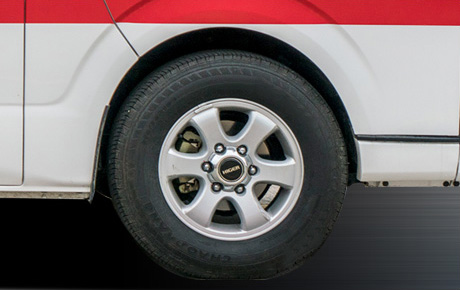

| Tyres: Radical – 195R15C
Wheels rim: Aluminium alloy wheel Rims *4 |
|||||||||||
CHASSIS :
DIMENSIONS(mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Base | 3110 | ||||||||||
| Overall Length | 5380 | ||||||||||
| Overall Width | 1880 | ||||||||||
| Overall Height | 2285 | ||||||||||
| Curb Weight（kg） | 2285 | ||||||||||
| Turning Radius (m) | 6.3 | ||||||||||
| Ground Clearance(mm) | 180 | ||||||||||
CAPACITY |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fuel Tank | 70 | ||||||||||
SEATING CAPACITY |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Seating Capacity | 14(13-17) | ||||||||||
