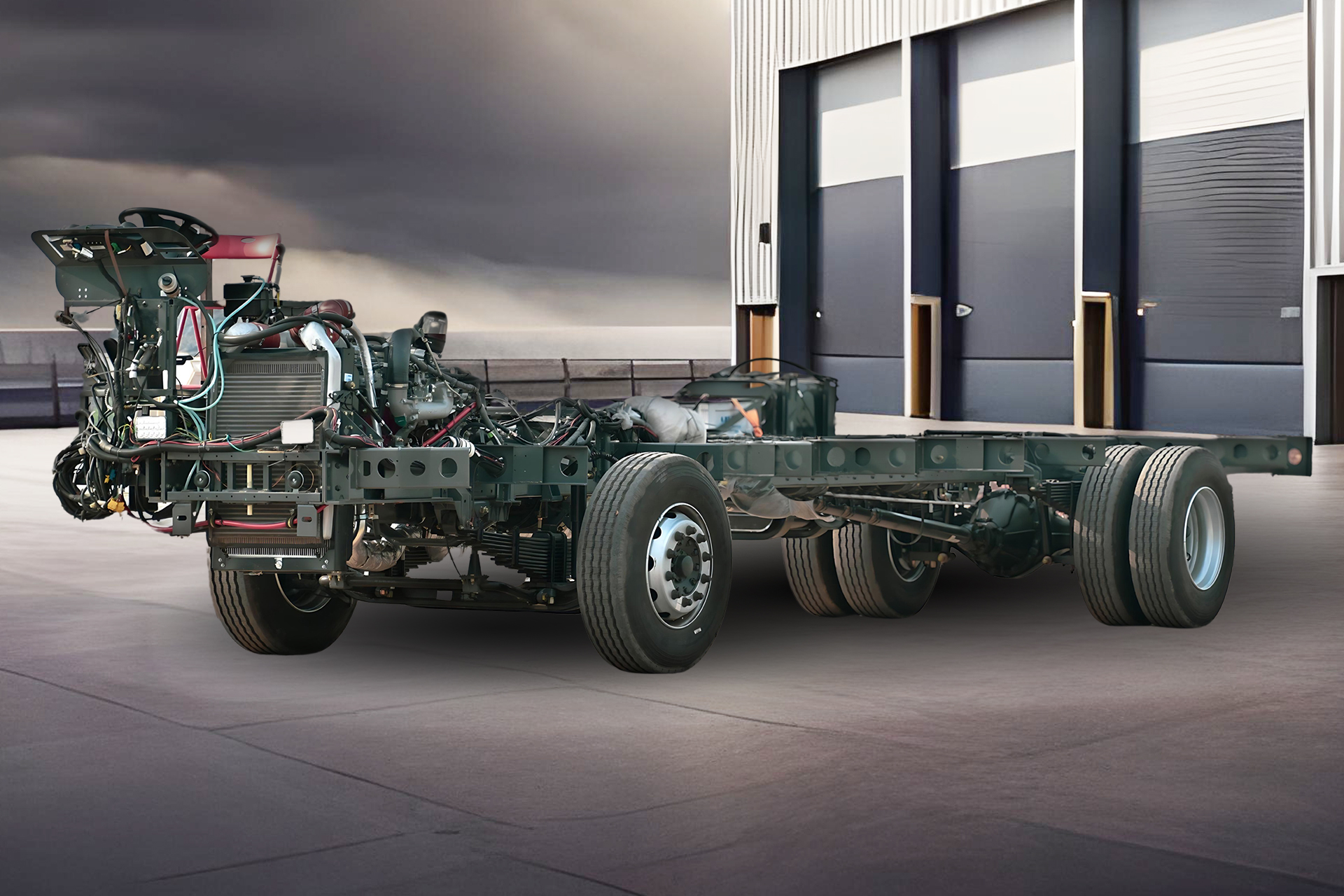

KLQ6126DFR Chassis

KLQ6126DFR Chassis

Categories: ,

Description

KLQ6116DFR  CATALOGE
 Model KLQ6126DFR
Overall dimensions(mm)(尺寸) 11465*2500
GVW (KG)
complete vehicle curb mass(KG)
Engine HINO
Gear Box Fast 6DS100T Gearbox
Suspension Leaf Suspension
Max Speed(KMH) 100
Wheelbase(mm) 5800
Chassis
Item Standard
Engine Model HINO JO8E-UU
Power (hp) 244HP
Emission Euro III
Gearbox Fast 6DS100T Gearbox
Propeller shaft  Strengthen Propeller Shaft
Retarder TELMA
Suspension Leaf Suspension
Steering system  Power-assisted Steering
Axle Front & Rear Fangsheng Front & Rear Axle
Braking System Front Disc, Rear Drum, Brake Auto Adjuster
Tyre Standard Higer Tyre 295/80R22.5(Tubeless)
Tank capacity(L) 300
Accumulator Equipped(24V)
Clutch  SACHS 430
Parking System Dual-Circuit Service Brake, Spring Energy Parking Brake
ABS WABCO ABS
 Other Air Suspension drive seat, Height level can be auto adjusted Clearance & Steering & braking Lamps and 1 spare tire included
